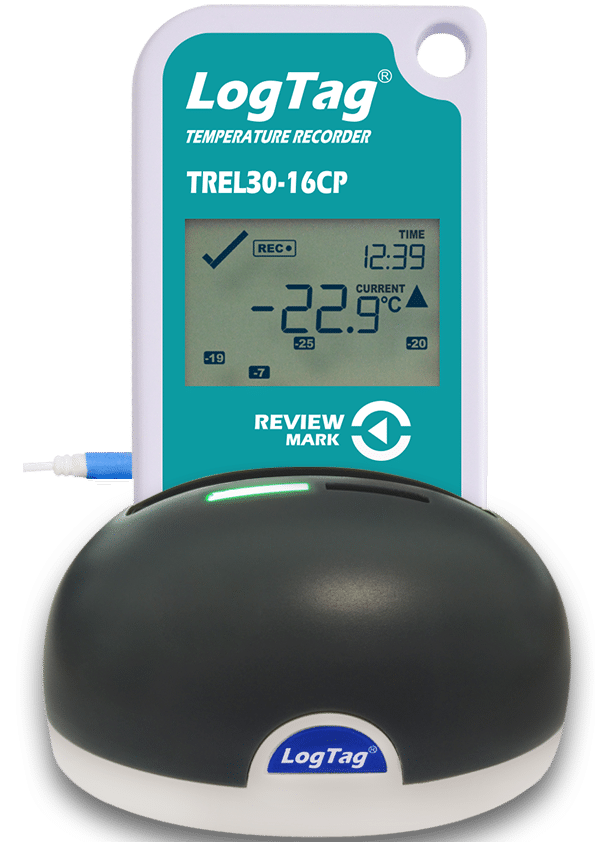

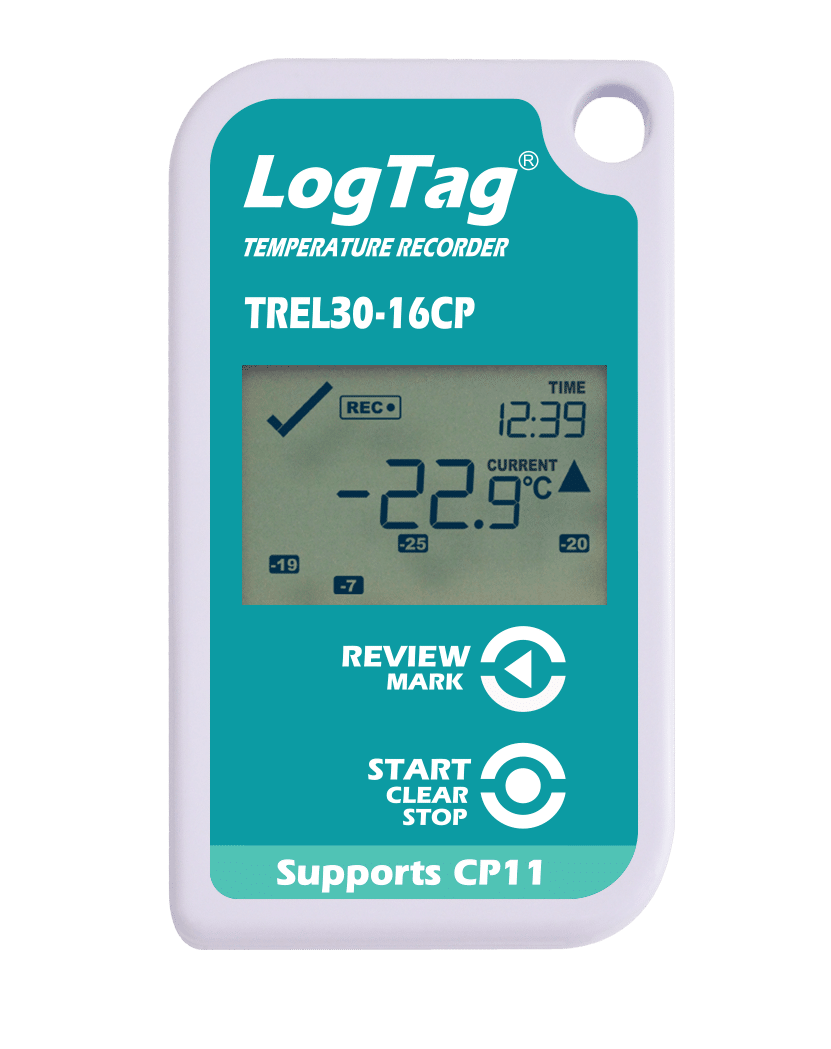

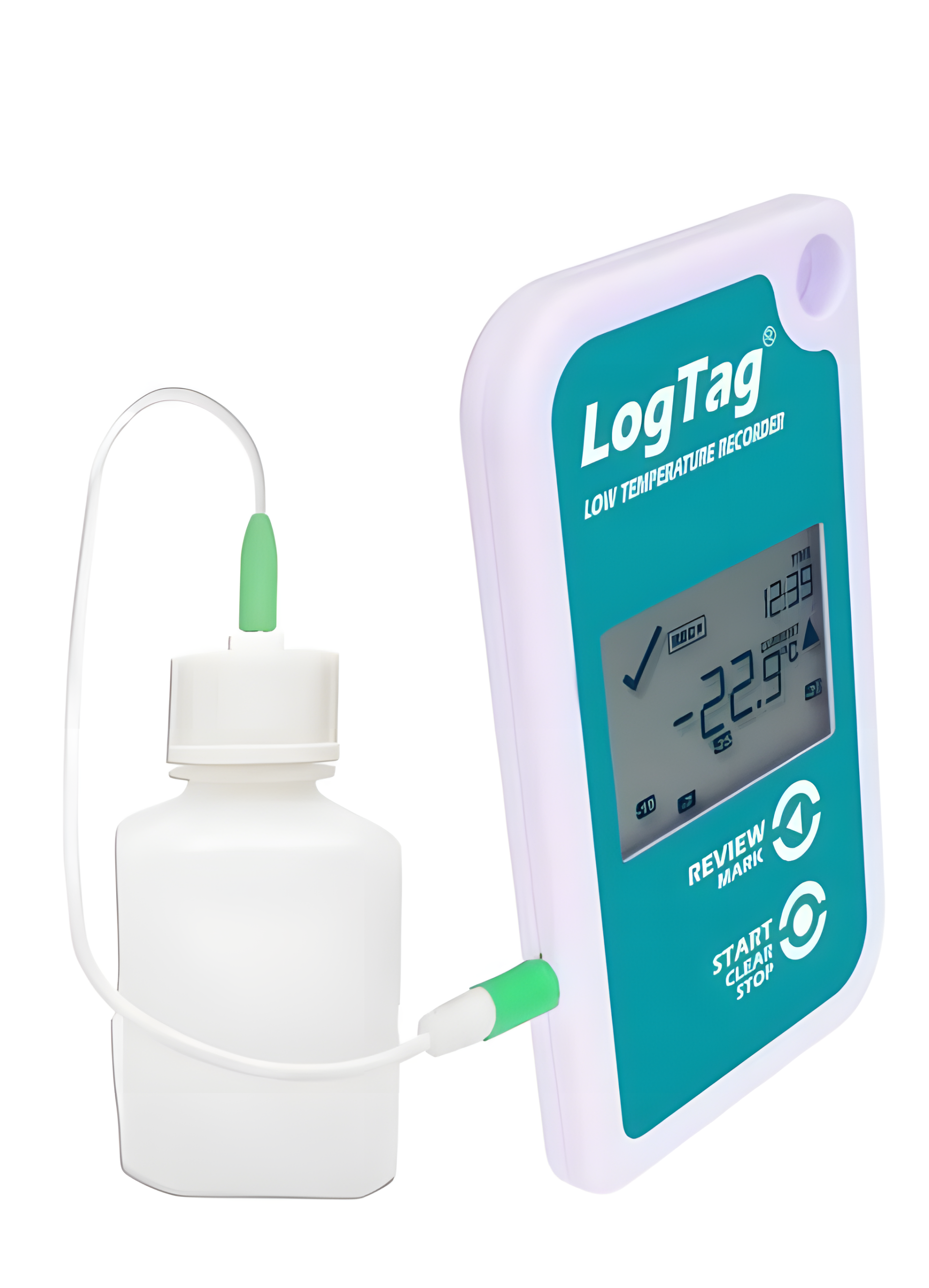

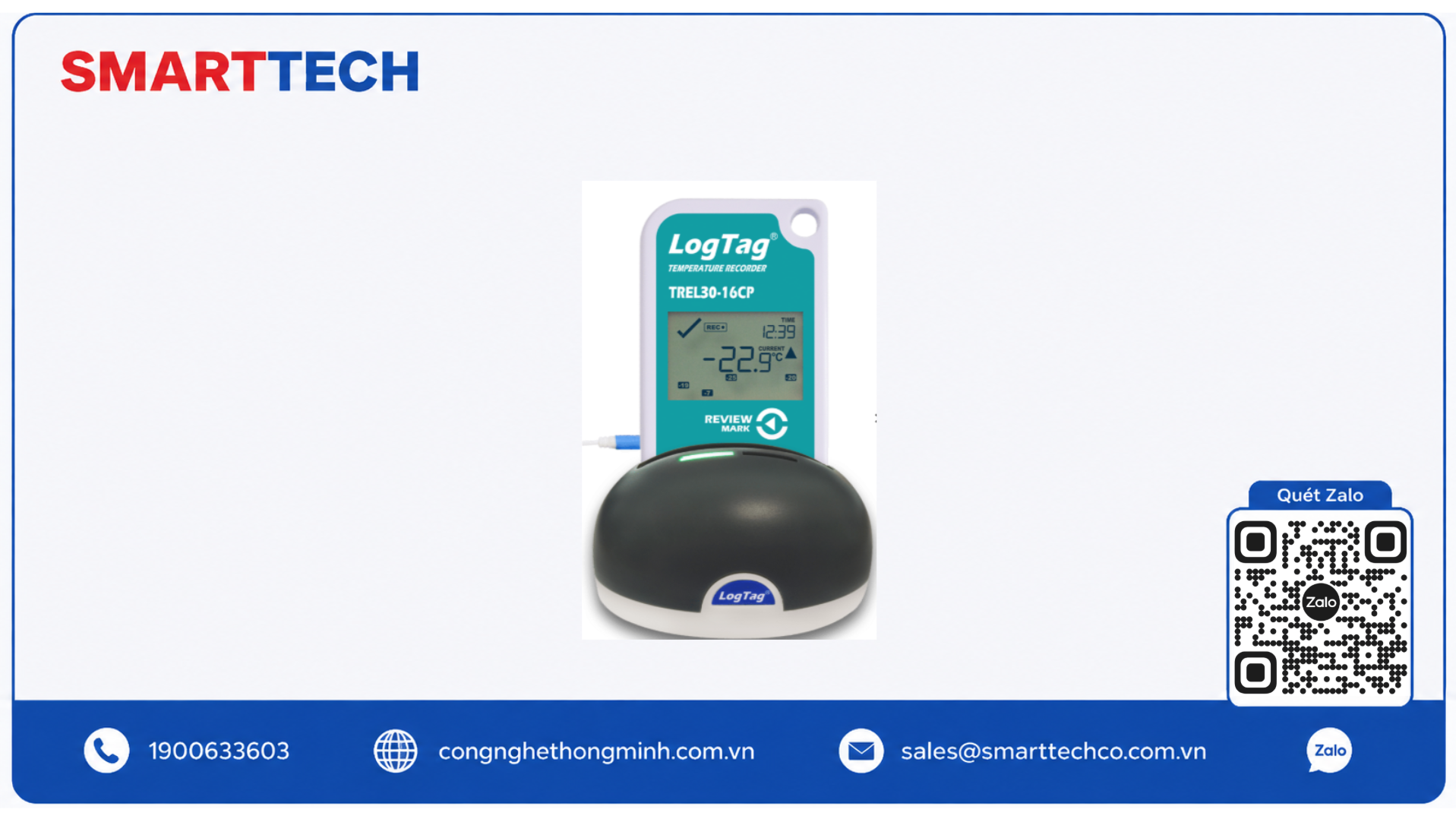

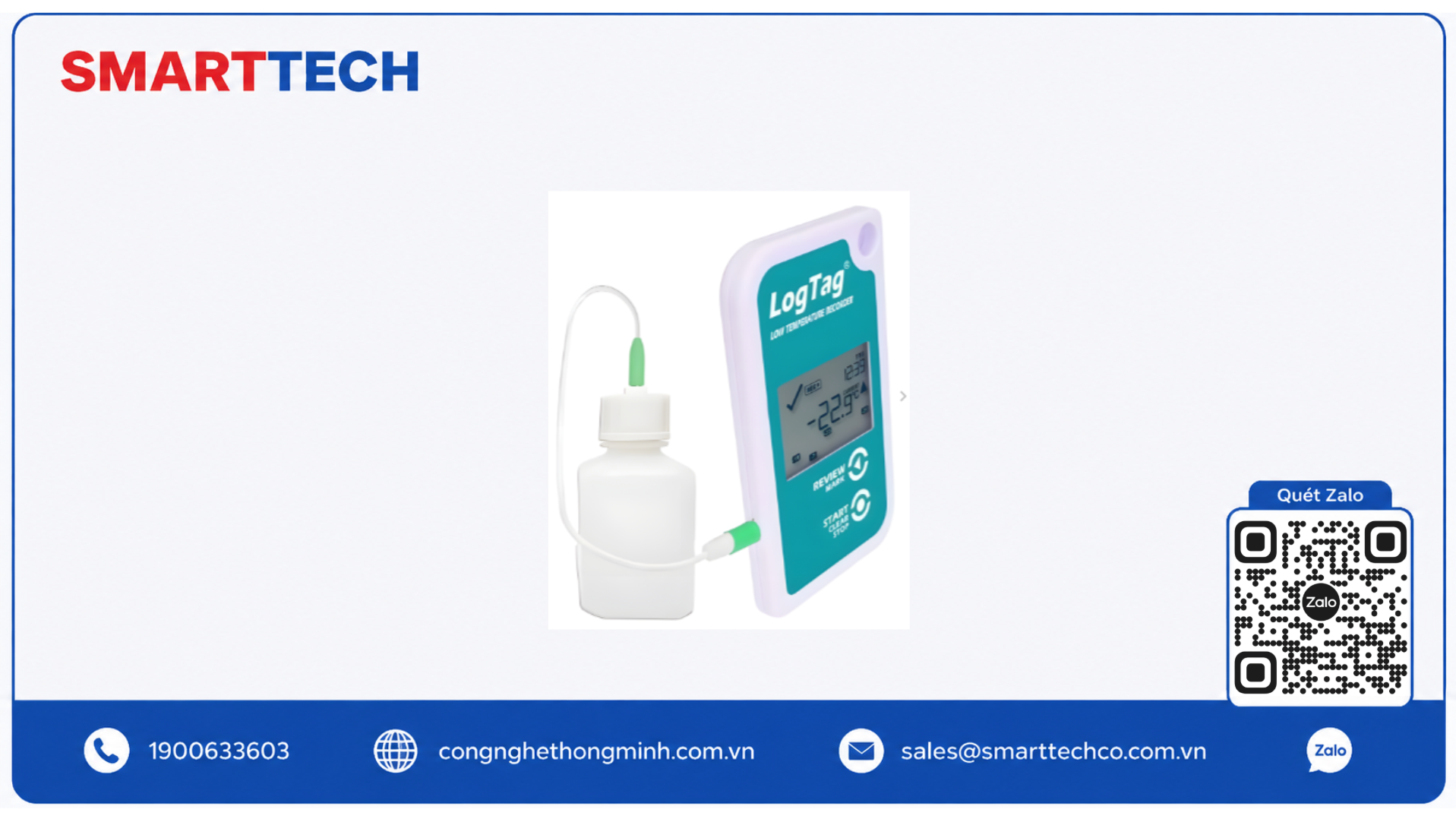

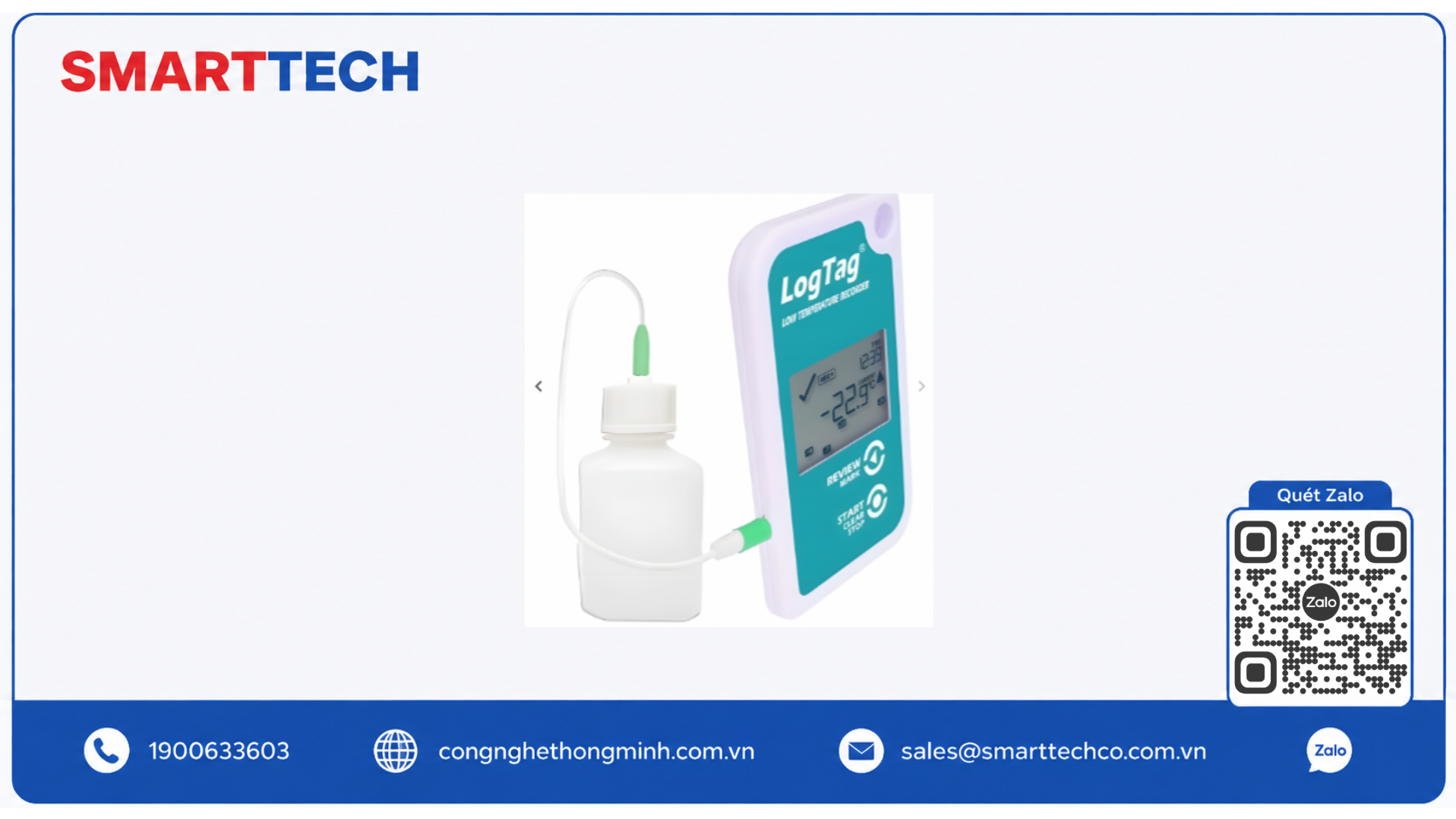

TREL30-16 | VACCINE KIT LCD Data Logger with External Low Temperature Sensor

TREL30-16 | VACCINE KIT is a temperature data logger using an external probe, designed for accurate monitoring of products stored in extremely low-temperature environments such as dry ice. The device visually displays the current temperature, recording status, battery level, and temperature malfunction alerts for the past 30 days. It is suitable for monitoring vaccines, biological products, and specialized cold chain applications.

Price:
Liên hệ

Specifications

Product ModelTREL30-16 (Replaceable Battery).
External Sensor Measurement Range-90°C to +40°C (-130°F to +104°F).
Operating Temperature Range-30°C to +60°C (-22°F to +140°F).
Storage Temperature Range-10°C to +40°C (14°F to +104°F).
Rated Temperature Reading AccuracyBetter than ±0.5°C for -20°C to +10°C (-4°F to 50°F).
Better than ±0.7°C for -50°C to -20°C (-58°F to -4°F) and +10°C to +30°C (50°F to 86°F).
Better than ±1°C for -80°C to -50°C (-112°F to -58°F) and +30°C to +40°C (86°F to 104°F).
Better than ±1.8°C for -90°C to -80°C (-130°F to -112°F ).
Actual performance is typically much better than the rated values.
Accuracy figures can be improved by recalibration.
Rated Temperature Reading Resolution0.1°C (0.2°F) for measurements -80°C to 0°C (-112°F to 32°F).
0.2°C (0.4°F) for measurements 0°C to 18°C (32°F to 64.4°F) and −90°C to −80°C (−130°F to −112°F).
0.3°C (0.5°F) for measurements 18°C to 30°C (64.4°F to 86°F).
0.5°C (0.9°F) for measurements 30°C to 40°C (86°F to 104°F).
LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®.
Recording Capacity15,905 temperature readings. 66 days @ 6min logging.
Day summary statistics memory (for display on LCD): up for 30 days of Max/Min/duration and alarm trigger statistics.
Sensor Reaction TimeTypically less than 2 minutes(T90) in moving air (1m/s) for ST10S type.
Sampling IntervalConfigurable from 30 seconds to hourly.
Logging Start OptionsPush button start or specific date & time. Optional start delay of up to 18 hours.
Recording IndicationState indicator “REC”.
Download TimeTypically less than 10 seconds for full memory (15,905 readings), depending on computer or readout device used.
EnvironmentalIP61 (when vertically mounted or hung).
Power SourceCR2032 3V LiMnO2
Battery LifeStorage life of 1 year before ‘start’ (if it is hibernation mode), followed by:
1 year of operation with normal use (6 minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly).
NOTE: Continual activation of the audible alarm will reduce the working life of the battery. When an alarm is triggered, the alarm should be cleared and reset as soon as possible.
Real Time ClockBuilt-in real time clock.
Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (i.e typically +/- 0.00294 seconds/day/°C).
Standard Remote Sensor Cable LengthStandard: 0.5m (19″).
Extended: 3m (9’10″) (Recommended maximum).
Remote Sensor Cable TypePTFE (FDA food contact rated), coaxial.
Size93mm(H) x 54.5mm(W) x 8.6mm(T).
Weight41g without External Probe.
Case MaterialPolycarbonate.

Instructions for Using the TREL30-16 Device | VACCINE KIT
