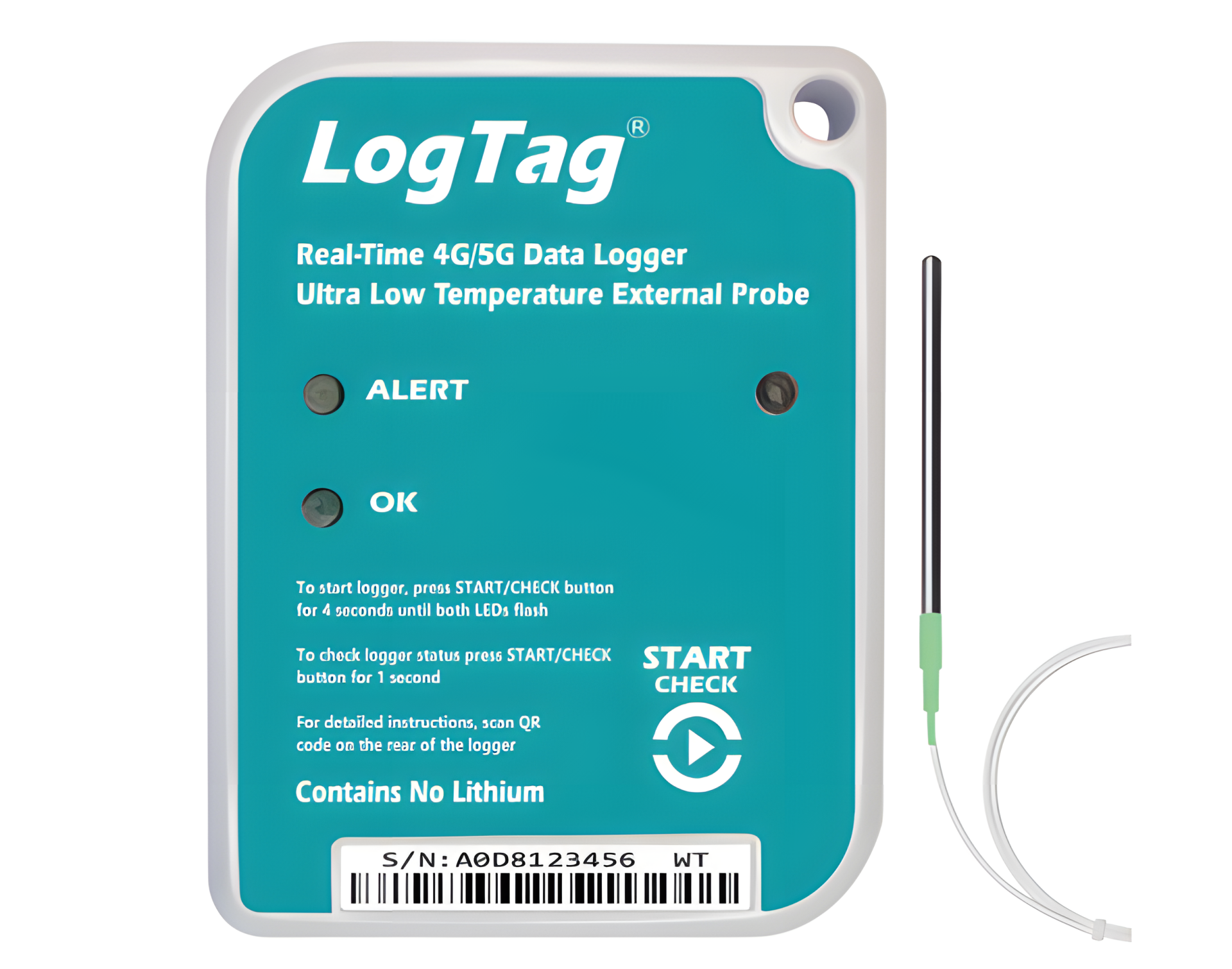

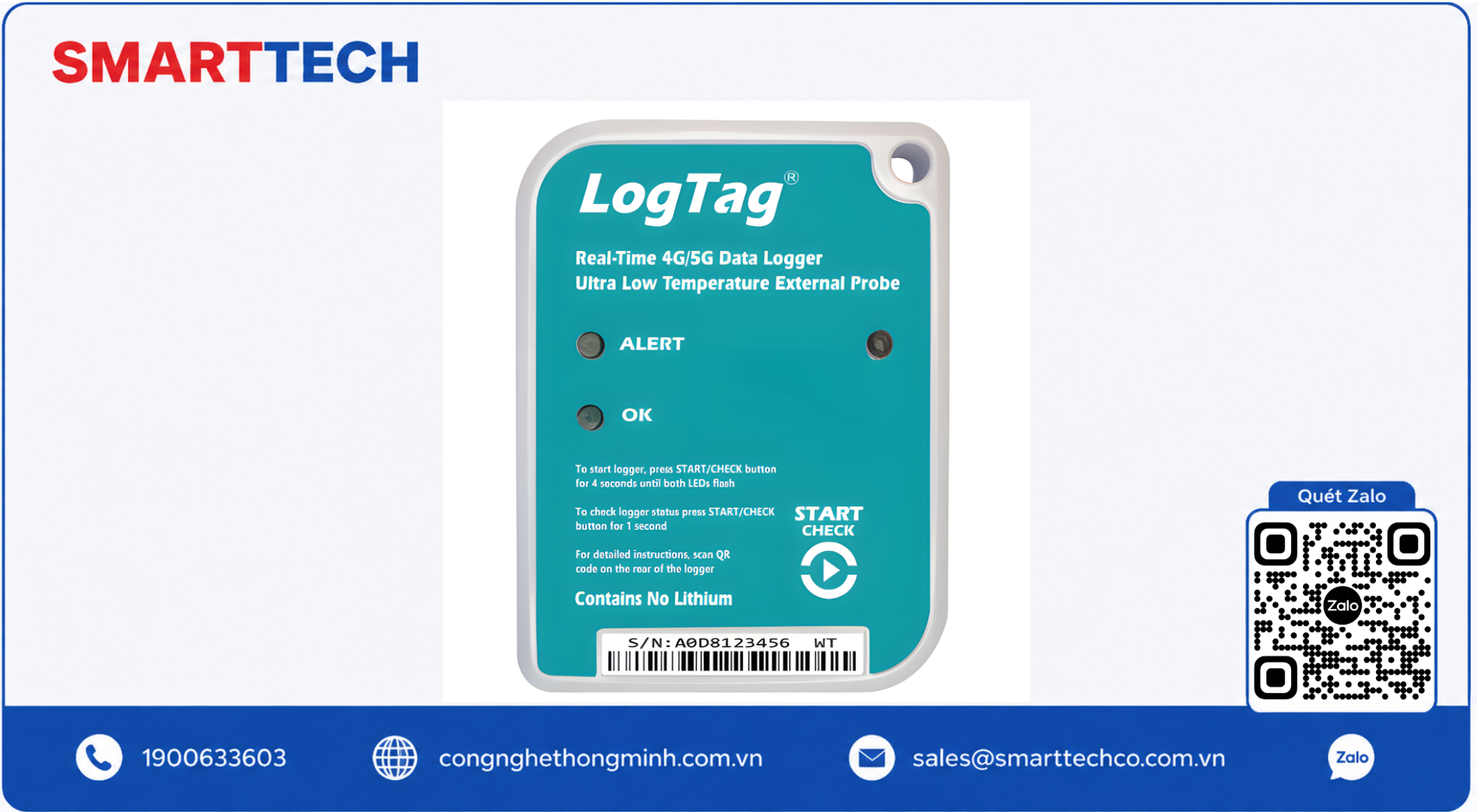

LT5GEO External Ultra-Low Temperature Probe

LT5GEO – A real-time temperature, humidity, shock, and GPS location monitoring device designed for accurate and secure environmental monitoring during transport. Thanks to integrated 4G/5G connectivity and GPS positioning, users can receive instant data without manual intervention, and the system automatically sends alerts when parameters exceed preset thresholds. The intuitive display and indicator lights allow for quick device status checks, while the multi-sensors enable simultaneous measurement of temperature, humidity, light, and impact with high accuracy.

Price:
Liên hệ

TECHNICAL SPECIFICATIONS

ParameterDetails
Product ModelLT5GEO-LE-S (Single-use) / LT5GEO-LE-M (Multi-use)
ConnectivityLTE Cat M1 / EGPRS
Temperature Measurement Range–30 °C to +70 °C (–22 °F to +158 °F)
Operating Temperature–30 °C to +70 °C (–22 °F to +158 °F)
Storage Temperature0 °C to +40 °C (+32 °F to +104 °F)
Temperature Accuracy+0 °C → +50 °C: better than ±0.45 °C (typically ±0.3 °C)
+50 °C → +70 °C: better than ±0.8 °C (typically ±0.5 °C)
–40 °C → +0 °C: better than ±0.95 °C (typically ±0.6 °C)
Humidity Accuracy20–80 %RH: better than ±3 %RH (typically ±2 %RH)
0–20 %RH: better than ±5 %RH (typically ±4 %RH)
80–100 %RH: better than ±5 %RH (typically ±4 %RH)
Light Measurement Range0 – 120,000 lux
Shock SensorRange: 0–16 g
Resolution: 0.1 g (≈1 m/s²)
Sampling Rate: 25 Hz
Memory Capacity16,320 on-device records
Up to 1,000,000 records on LogTag® Online
Data Transmission Interval20 minutes – 24 hours (configurable per shipment)
Immediate upload upon alarm
Sampling Interval10 minutes
Start OptionsPush-button start
Delay start from 1 minute to 72 hours
Ingress ProtectionIP61
Software SupportLogTag® Online
LogTag® Mobile App (optional)
Power SupplyRechargeable NiMH battery (non-lithium)
Battery LifeUp to 90 days (depending on transmission settings)
InterfaceUSB 2.0 / USB Type-C (metal connector)
Dimensions90 mm (H) × 68 mm (W) × 25 mm (D)
Weight166 g
Housing MaterialPolycarbonate

KEY FEATURES

  • Real-time tracking
    • Data is automatically transmitted via LTE Cat M1/EGPRS cellular network without manual intervention.
  • Ultra-low temperature monitoring
    • Supports external probe for deep freezer applications, suitable for pharmaceuticals, vaccines, and biological samples.
  • Instant alerts
    • Notifications via SMS, email, or call when thresholds are exceeded, enabling timely response.
  • Tamper-evident design
    • Ensures data integrity and security during transportation.
  • Large memory capacity
    • Stores 16,320 records locally and up to 1,000,000 records on LogTag® Online.
  • User-friendly operation
    • One-button start, flexible configuration, and easy data access via mobile app or cloud platform.
  • NiMH rechargeable battery
    • Safe, lithium-free design compliant with air transport regulations.
  • Durable polycarbonate housing
    • Impact-resistant and suitable for harsh environments.
  • Flexible usage options
    • Available in single-use or multi-use versions for various logistics and cold chain monitoring needs.
