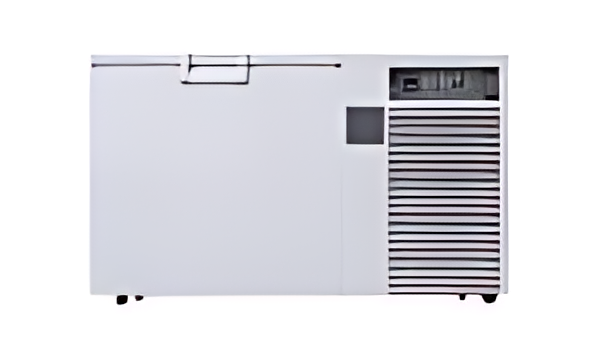

The CRYO 230 freezer delivers exceptional reliability with our highly reliable TRUE DUAL™ technology. Featuring two independent cooling systems, this advanced design provides double security for your samples. Even in the rare event that one cooling system fails, the second system continues to maintain stable storage at -130°C.
Advanced Cooling Precision for Sensitive Materials
Designed for long-term storage and research, the Cryo-230 freezer offers superior temperature precision for a wide range of applications, including:
Preservation of cells, DNA, and bone materials
Long-term preservation of bacteria and microorganisms
Supporting low-temperature scientific experiments
Safe handling of temperature-sensitive samples
Flexible storage with Cryobox compatibility
For enhanced organization and security, the CRYO 230 can be supplied with a 9x9 or 10x10 cryobox, allowing you to easily handle and confidently protect valuable samples.
Why choose the CRYO 230 Freezer?
TRUE DUAL™ technology ensures continuous operation Extra-low storage -130°C for maximum stability
Industry versatility, suitable for medical, academic, and industrial applications
Safe sample handling with compatible cold box solutions
Note: Chart recorder as illustrated is not included.
Specifications
Item Code
Dai 0198 / 1200002
Temperature Range (°C)
-140 / -150 °C
Max. Ambient Temperature (°C)
+30 °C
Capacity (L)
233
Exterior Dimensions WxDxH (mm)
1760 X 962,5 / 1137,5* X 1090
Interior Dimensions WxDxH (mm)
680 X 500 X 685
Weight (KG)
391
Insulation (mm)
170
Cooling Technology
Dual System / Static Cooling
Controller Model / Probe Type
TTM-004 / PT100
Power Supply (V)
3 X 400
Frequency (Hz)
50
Power Consumption (KWH/24H)
33.5
AMP (A)
4.7
Power (Watt)
2021
Horse Power (HP)
2 x 11/2
Item Code
Dai 0198 / 1200002
Warning and monitoring system
Alarm Display As Text – Not Codes
No
Visual / Acoustic Alarm
Yes / Yes
Power Failure Alarm
Yes
Adjustable High/Low Temperature Alarm
Yes / Yes
Open Door Alarm
No
Probe Failure Alarm
Yes
Low Battery Alarm
No
Compressor Failure Alarm
No
Voltage Free Contact For Remote Alarm (E.G. GSM Alarm Module)
